NEW Wolf Products listed below

Wolf1000T

Link-Drop-Link Repeater

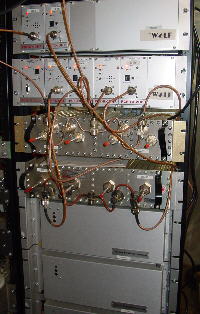

 Triple tuWolf Repeater with E&M.jpg (19053 bytes)WOLF-BW_WEB.jpg (13723 bytes)

WELCOME TO OUR WOLF SITE



Thank you for visiting our tuWolf site.  tuWolf RF Designs Inc. manufactures very rugged high quality, synthesized, low current (<100 mA) radio repeaters for emergency battery operated portable applications or remote sites where the power source is battery or solar applications.   The radio bands are: UHF (403-430, 450-470MHz) and VHF (138-174MHz). The output power is 5W VHF and 4W UHF.  The repeater can be programmed for CTCSS or DCS.   The tuWolf repeater can be used in linking radio systems together.  Please view the balance of our site by navigating through "Contents", which will provide you with a good overview of the site.

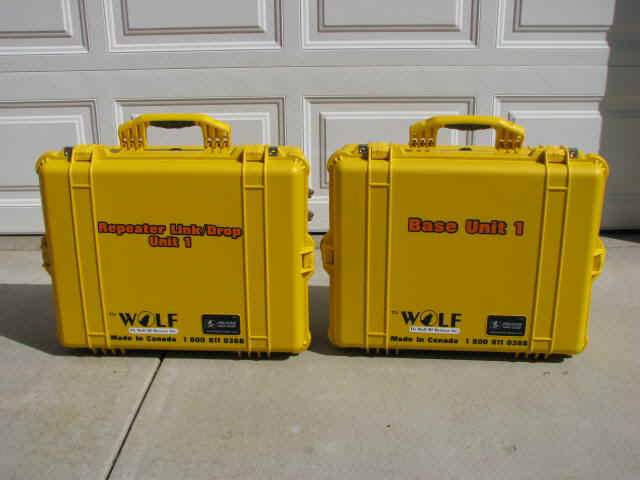

NEW NEW NEW - EMERGENCY DROP IN REPEATER


For more information please select EMG Repeaters under Wolf Products (top left)

____________________________________________________________________________________________

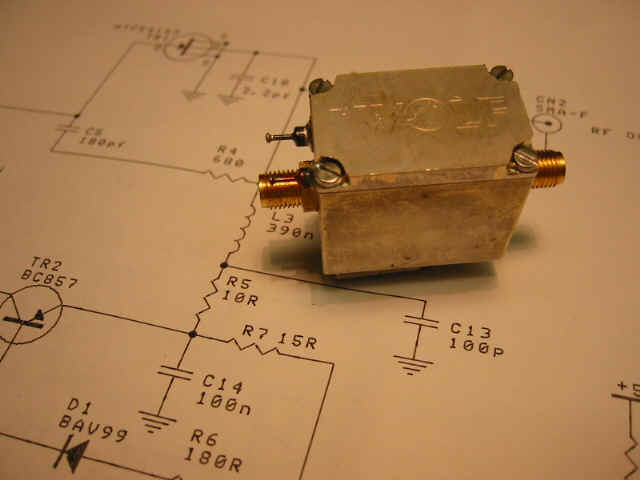

NEW NEW NEW - 100-500 MHz Rx Preamp Option for Wolf Repeater

Copy (2) of IMG_5222.JPG (70732 bytes)

For more information select RF Amp under Wolf Products

______________________________________________________________________________________________

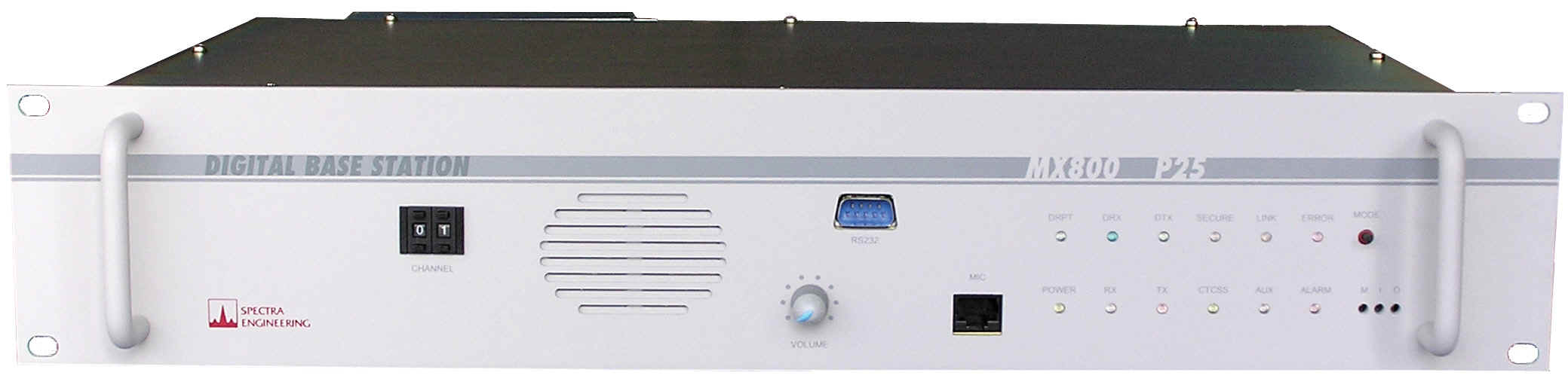

MX800 P25.jpg (200236 bytes)

"MX800 APCO P25 REPEATER"

MX800 APCO P25 REPEATER\BASE STATION

APCO Project 25 (P25) is the industry wide effort to set the standards of uniform digital Two-Way Radio for public safety organizations and has also been selected in other private system application, worldwide.

A major advantage for using P25 is to reduce spectrum bandwidth usage and the ability to recover excellent audio quality from noisier signals, where compared to analogue signals, the noise is always accumulative and degrades the audio quality.

Main features of the MX800 P25 Base Station & Repeater:

bulletP25 Compliant 7200 bps IMBE™ Enhanced Vocoder.
bulletP25 Digital audio to speaker & line.
bulletP25 Digital audio from Mic socket & line.
bulletRepeats all P25 transmissions.
bulletRepeats analog transmissions.
bulletAutomatically switches to P25 mode on reception of a P25 carrier.
(Allowing analog radios to still work on the same system.)
bulletP25 Digital can operate on any freq band.
bulletP25 NAC programmable or transparent.
bulletPasses P25 private call and group call.
bulletRepeater passes P25 clear or encrypted.
bulletFront panel indicators show P25 status.
bulletDesign based around proven MX800 architecture.
bullet255 channel capacity.
bulletFlash based software design allows future upgrades for new features.
bulletStandard Analog MX800 can be upgraded to P25.
bulletLow power consumption.
bulletRF Specs in Digital mode are the same as Analog mode.
bulletProgrammable External PTT mode, Digital or Analog.

We are actively seeking Manufactures Representatives, Radio Communications Dealers and Radio Distributors
