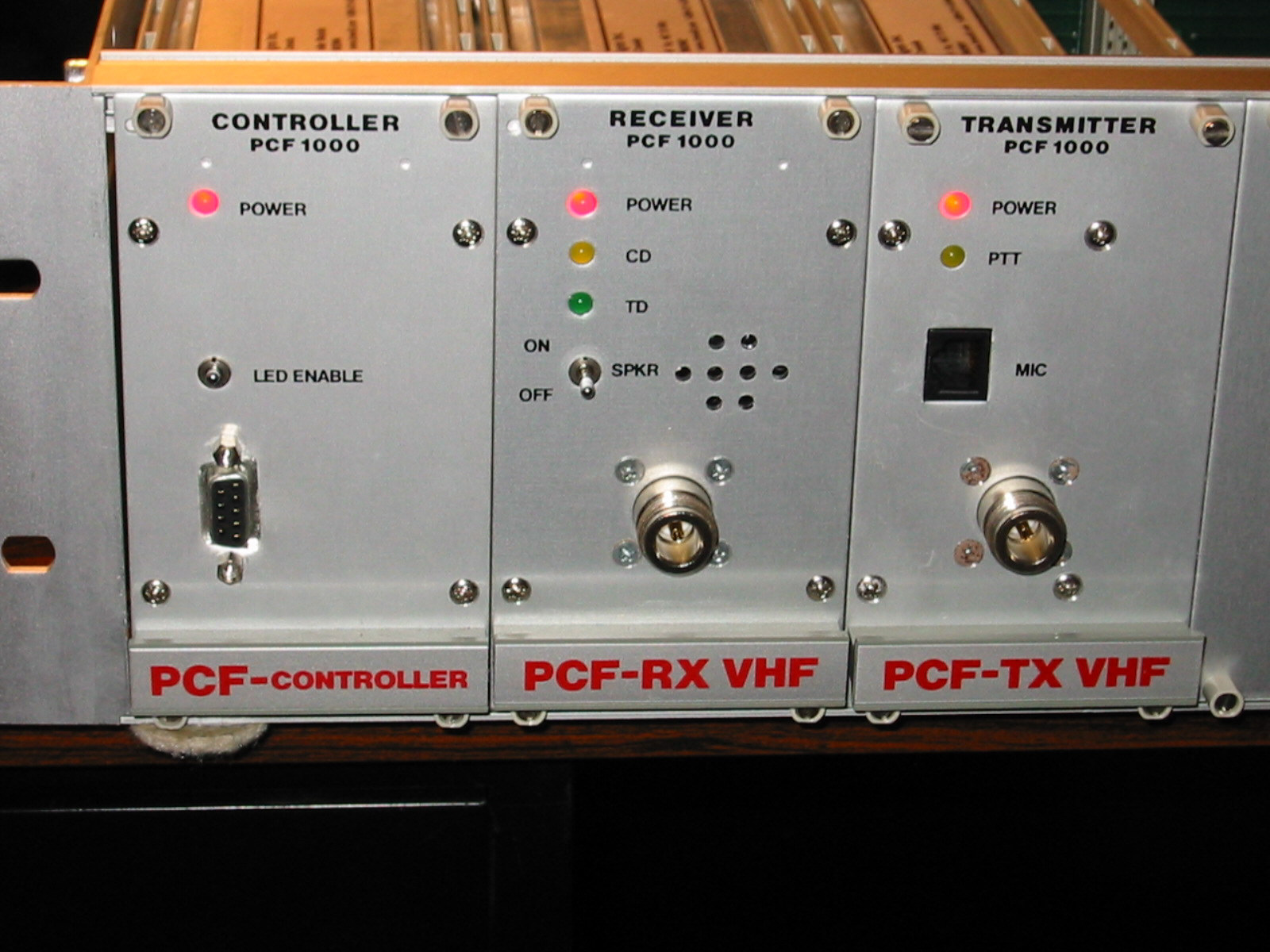

Wolf 1000 |
|
|
VHF |
|
|
| |
|
|
|
|
|
General |
|
|
Wolf1000V |
|
|
Frequency Range |
|
|
136-174 |
|
|
PLL Step |
|
|
2.5, 5, 6.25,7.5 kHz |
|
|
Channel Spacing Wide/Narrow |
|
|
25,30kHz/12.5, 15kHz |
|
|
Antenna Impedance |
|
|
50 ohms |
|
|
Operational Voltage |
|
|
10-16 VDC |
|
|
Programming |
|
|
PC-Serial |
|
|
Operational Temperature |
|
|
-30 to +60C |
|
|
Extended Operational
Temperature |
|
|
-40 to +60C |
|
|
IC Certification |
|
|
282D36413110 |
|
|
FCC Compliance |
|
|
Parts 22,74,80,90,95 |
|
|
FCC ID |
|
|
ALH36413110 |
|
|
RF Connector |
|
|
N-Type Female |
|
|
Repeater Standby Current |
|
|
80 mA |
|
|
| Dimensions |
19 wide |
5.25" High |
7.87" Deep |
|
|
CTCSS
Encoding/Decoding |
|
|
|
|
|
Maximum Ctcss Tone Detection |
|
|
|
|
|
@100Hz - 257 Hz |
|
|
250mSec |
|
|
@67Hz |
|
|
375mSec |
|
|
Maximum Ctcss Tones |
|
|
39 |
|
|
Tone Measurement Accuracy |
|
|
0.50% |
|
|
Rx Ctcss Tone Range |
|
|
65Hz to 257Hz |
|
|
|
|
|
|
|
|
DTMF
Encoding/Decoding |
|
|
|
|
|
Decoder |
|
|
|
|
|
Minimum Decoding Time |
|
|
50mSec |
|
|
Frequency Detect Bandwidth |
|
|
1.5 to 3.5% |
|
|
Twist Tolerance |
|
|
+/- 10dB |
|
|
Encoder |
|
|
|
|
|
Frequency Accuracy |
|
|
+/- 1% |
|
|
Output Distortion(DC-50kHz) |
|
|
-20dB |
|
|
Tone Start-up Time |
|
|
2.5 mSec |
|
|
DTMF Interdigit Time |
|
|
50mSec |
|
|
Maximum Digits Regenerated |
|
|
18 in one string |
|
|
| |
|
|
|
|
|
Repeater
Configurations |
|
|
|
|
|
1. Single Repeater |
2.Dual Repeaters |
3. Triple Repeaters |
4. Link Drop |
|
|
5. Link/Drop/Link |
6. Delta |
7. Wye |
|
|
|
| |
|
|
|
|
|
Receiver
Specifications |
|
136-174MHz |
Wolf1000V |
|
|
VHF |
(Measurements
made per EIA standard EIA-RS 316B) |
|
|
|
|
Sensitivity (12dB Sinad) |
|
|
|
|
|
Wide/Narrow |
|
|
-118dBm |
|
|
Selectivity |
|
|
|
|
|
Wide/Narrow |
|
|
82 dB / 75 dB |
|
|
Intermodulation Distortion |
|
|
|
|
|
Wide/Narrow |
|
|
73 dB / 72 dB |
|
|
Spurious Response |
|
|
90 dB |
|
|
Audio Output |
|
|
500 mWatts |
|
|
Receiver Distortion |
|
|
<2%
Typical <1% |
|
|
Attack Time |
|
|
60 mSec |
|
|
Attack Time in Sleep Mode |
|
|
80 - 200 mSec |
|
|
20 dB Quieting |
|
|
0.25uV |
|
|
Frequency Stability |
|
|
+/- 2ppm (-30C - +60C)
Typical <1ppm |
|
|
De-emphasis Audio Response |
|
|
+1.0 to -3.0 dB (300 -3000Hz) |
|
|
Squelch PC Adjustable |
|
|
-123 to -105 dBm |
|
|
Operational Temperature |
|
|
-30C to +60C(Optional -40C to
+60C) |
|
|
| |
|
|
|
|
|
Transmitter
Specifications |
|
136-174MHz |
Wolf1000V |
|
|
VHF |
|
(Measurements
made per EIA-RS 316B) |
|
|
|
Power Output |
|
|
5 Watts |
|
|
Duty Cycle |
|
|
100% |
|
|
Modulation Distortion |
|
|
<2%
Typical <1% |
|
|
Frequency Stability |
|
|
+/- 2ppm (-30C - +60C)
Typical <1ppm |
|
|
Harmonics & Spurious
Response |
|
|
85 dB |
|
|
FM Noise |
|
|
|
|
|
Wide/Narrow |
|
|
45dB / 43dB |
|
|
Tx Audio Pre-Emphasis |
|
|
+1.0 to -3.0 dB (300 -3000Hz) |
|
|
Operating Current |
|
|
1.5 Amp at 5Watts |
|
|
Transmit Rise Time |
|
|
36.5 mSec 100% Pwr |
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
T.U. Wolf Rf Designs Inc. |
10730
Pinecrest Road Vernon, B. C. V1H 2C1 |
Phone:
250-260-1633 or 1-800-811-0388 |
