"High Quality Repeaters

TU Wolf Rf Designs Inc.

__________________________________________________________________________

Pictures of Emergency Repeater

2 link/drop Systems

_______________________________________________________________________

Link/Drop System

_______________________________________________________________________

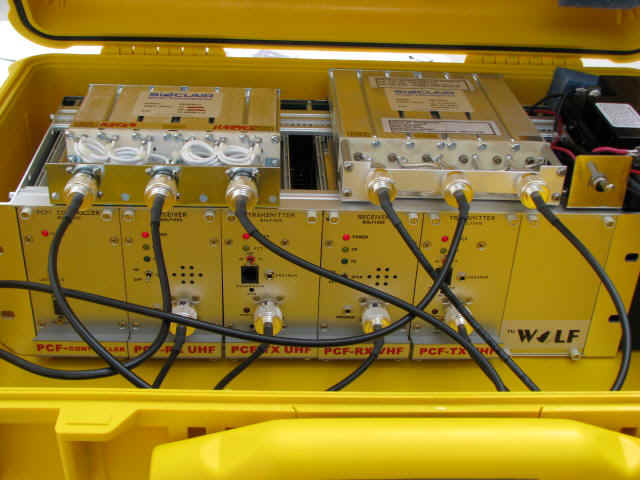

Link/Drop System

VHF Drop, UHF Link

_______________________________________________________________________

Internal Gel Cel - 48 hours with 10/90 duty cycle

_______________________________________________________________________

VHF and UHF N-Type Coaxial Connections

with sealed covers

_______________________________________________________________________

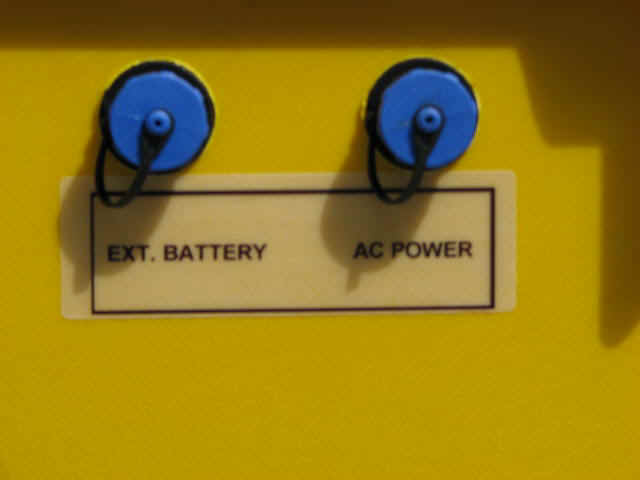

110VAC Input to Repeater

Charges Gel Cel and operates repeaters

External Battery input operates the repeater

and charges the internal Gel Cel

External Battery can be used as a Solar charger input

to charge the Gel Cel

_______________________________________________________________________

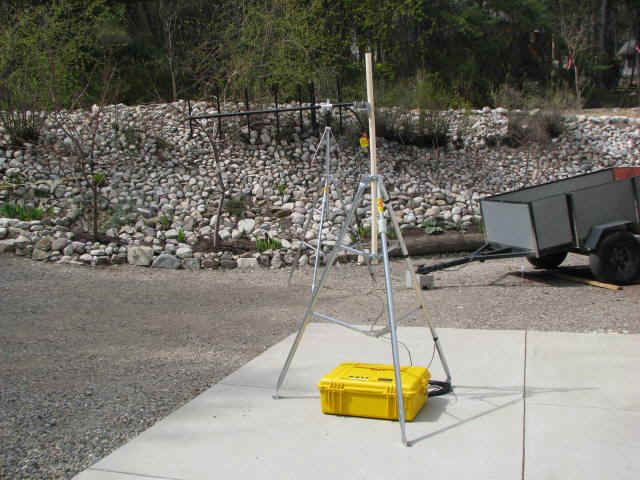

Tripod with VHF Drop Antenna

_______________________________________________________________________

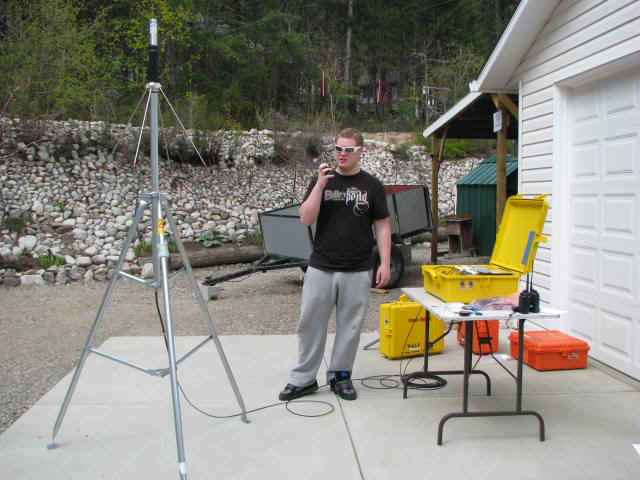

Tripods with VHF Drop and Link Antennas
